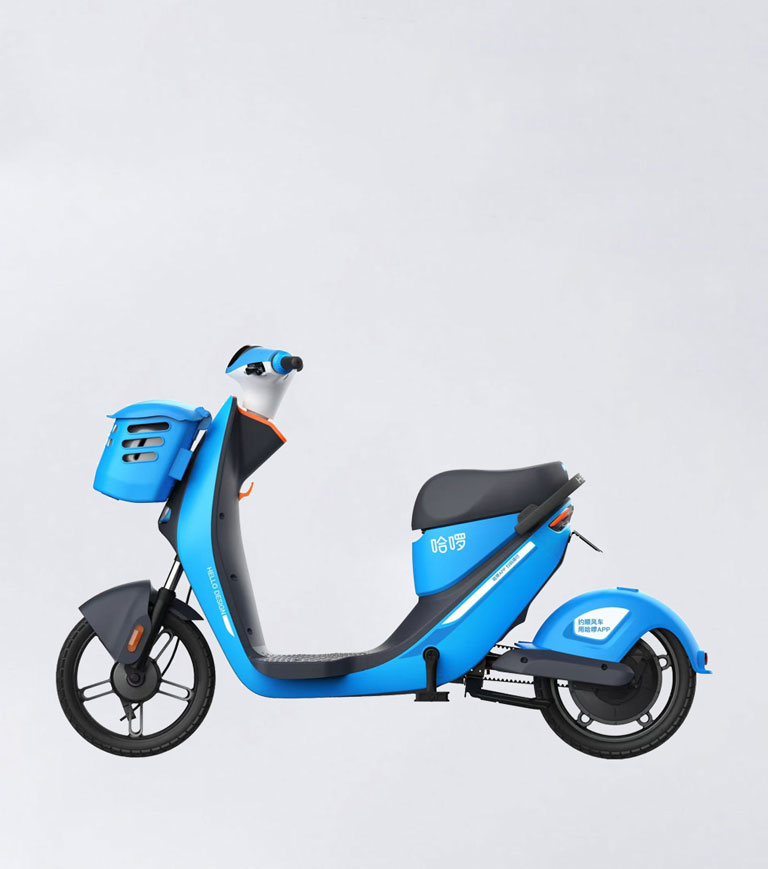

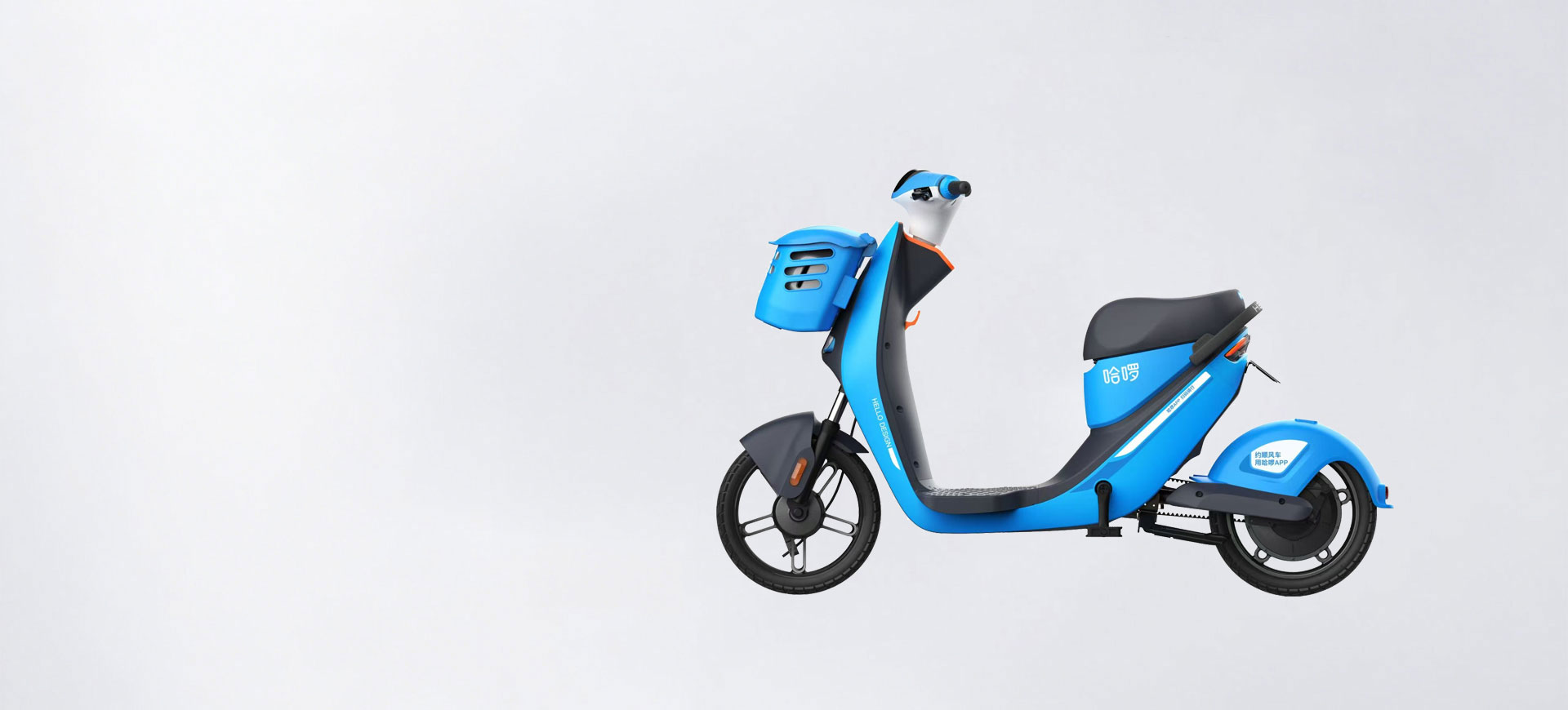

OM38｜

Battery Capacity

48V24Ah

Cell Material

Composite Lithium Manganese Oxide

Theoretical Range

80Km

Battery Protection

Battery Management System (BMS)

Braking System

Front and Rear 110 Disc Brakes (Front Right, Rear Left)

Front and Rear Suspension

Front Mechanical, Rear Hydraulic

Tire Specification

Front 16*2.125, Rear 16*2.5

Motor Specification

48V350W

Saddle Craftsmanship

Leather Upholstery

Gear Ratio

24:16:00

Saddle Size

Bottom 380mm, Top 320mm

Pedal Size

Length 320mm, Width 400mm, Ground Clearance 260mm

Frame Material

Iron

Kickstand

Single Stand

Intelligent Positioning

GPS+AGPS+BeiDou+Cellular+WiFi

Intelligent Anti-Theft

Supported

Vibration Detection

Supported

Self-Diagnosis

Supported

Voice

Intelligent Voice

Front Light

Time Division Control

Rear Light

Running Lights + Brake Lights + Car Finder Light

Instrument Display

Battery Indicator Light

Controller

48V 15A Current Limit

Overall Weight

54Kg

Maximum Speed

24Km/h

Waterproof Level

IPX7

Seat Height

720mm

Discharge Method

Soft Connection
